(10) 1.5”x3” Steel tubing stakes 16” tall with a 3/8”x2” chain-rub rail the length of the body on both sides. (5 stakes each side)
(4) Removable 2” heavy-wall pipe center stakes 16” tall to divide the deck load.

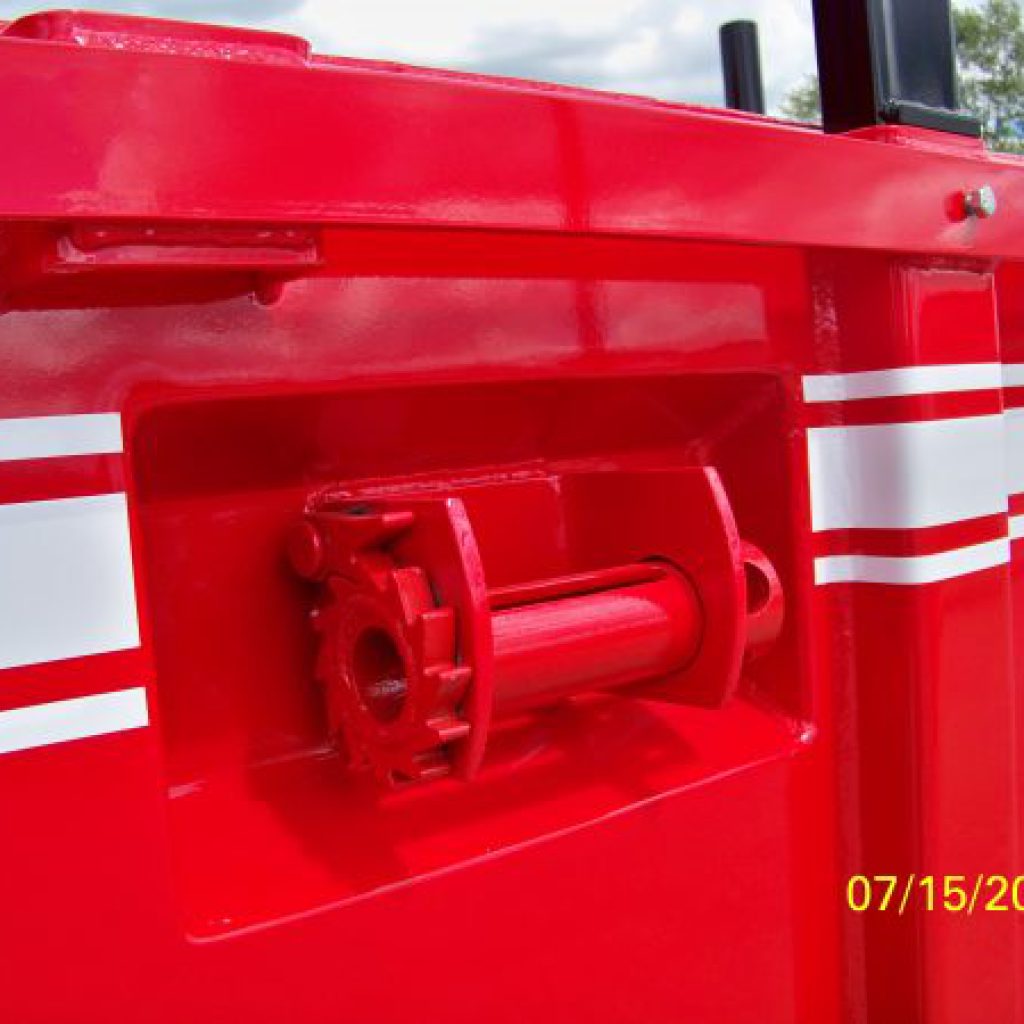

(3) DOT approved recessed binder winches located on the passenger side. (3) 4” straps and a binder bar are included.
SIDE, CENTER AND BINDER WINCHES
(10) 1.5”x3” Steel tubing stakes 16” tall with a 3/8”x2” chain-rub rail the length of the body on both sides. (5 stakes each side)
(4) Removable 2” heavy-wall pipe center stakes 16” tall to divide the deck load.
(3) DOT approved recessed binder winches located on the passenger side. (3) 4” straps and a binder bar are included.
DRAINS AND FILLS

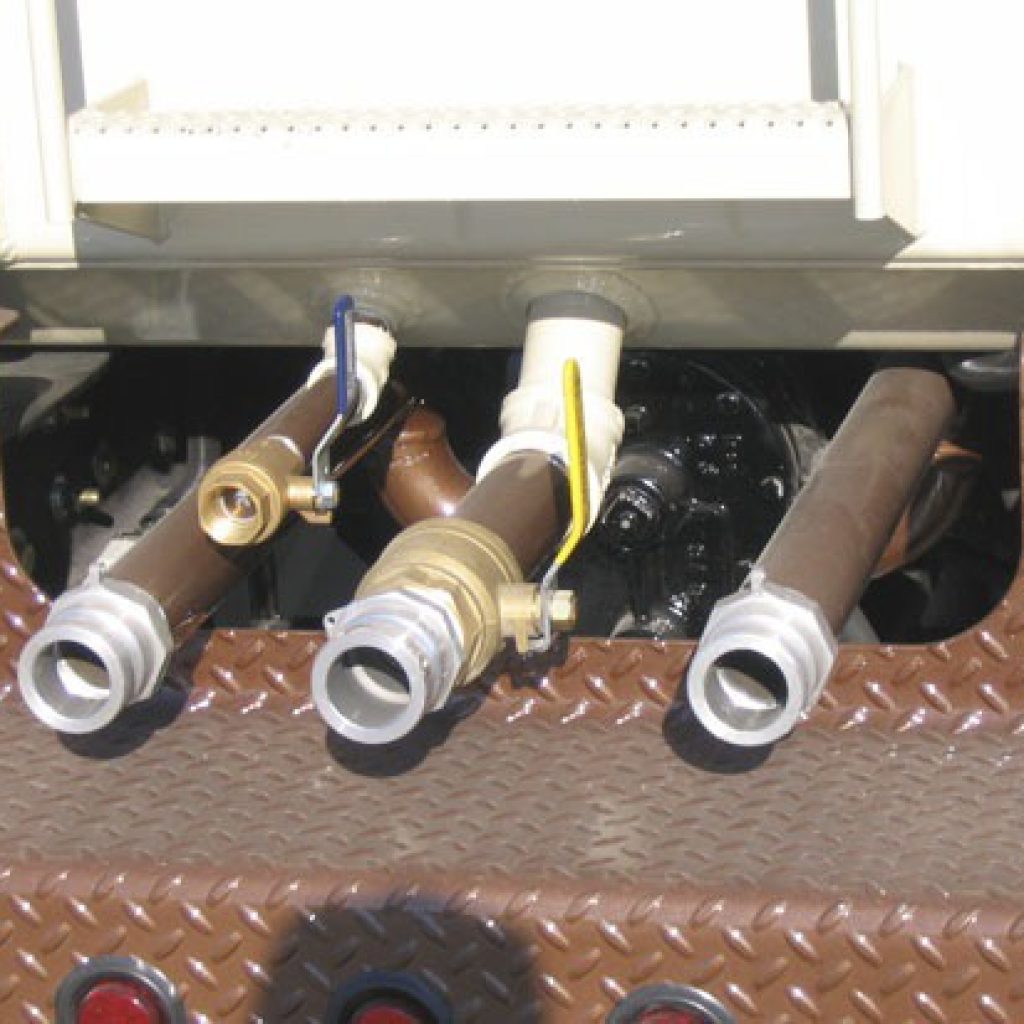

(3) 2” drains with brass ball valves (1) in each front corner and (1) in the center rear. The rear drain has a sump system allowing water to drain from both sides of the tank.
(1) 2” fill with cam-lock cap located in the driver side front corner.
VERTICAL BOXES
(1) Driver’s side front vertical tool cabinet measuring 64” tall x24” wide x24” deep outfitted with adjustable shelves.
(1) Passenger’s side front vertical tool cabinet measuring 64” tall x24” wide x24” deep outfitted with adjustable shelves above the fuel pump, and the fuel hose reel.
Both front vertical tool cabinets have LED food lights mounted on top of them
UNDER TANK TOOL BOXES
(2) Heavy-duty flush bottom under tank tool boxes with hinge down doors constructed out of 1/8” steel on both sides in front of the drive axles. 18” tall x 22” deep with the length being determined by the location of the rear axles.
(2) Heavy-duty flush bottom under tank tool boxes with hinge down doors constructed out of 1/8” steel on both sides in the rear of the drive axles. 18” tall x 22” deep with the length being determined by the location of the rear axles.
Tool boxes are painted white inside with the body color on the outside.
FUEL TANK FEATURES
(2) 110 gallon diesel fuel tanks located between the vertical tool cabinets with 2” vented fill caps.
Fuel is supplied by a 12v fuel pump, thru a ¾” 50 ft. fuel hose with nozzle mounted on a manual return hose reel.
Fuel pump and hose reel are located in the Passenger side vertical cabinet.

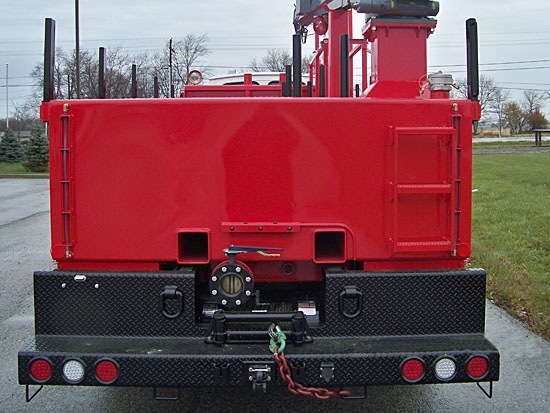

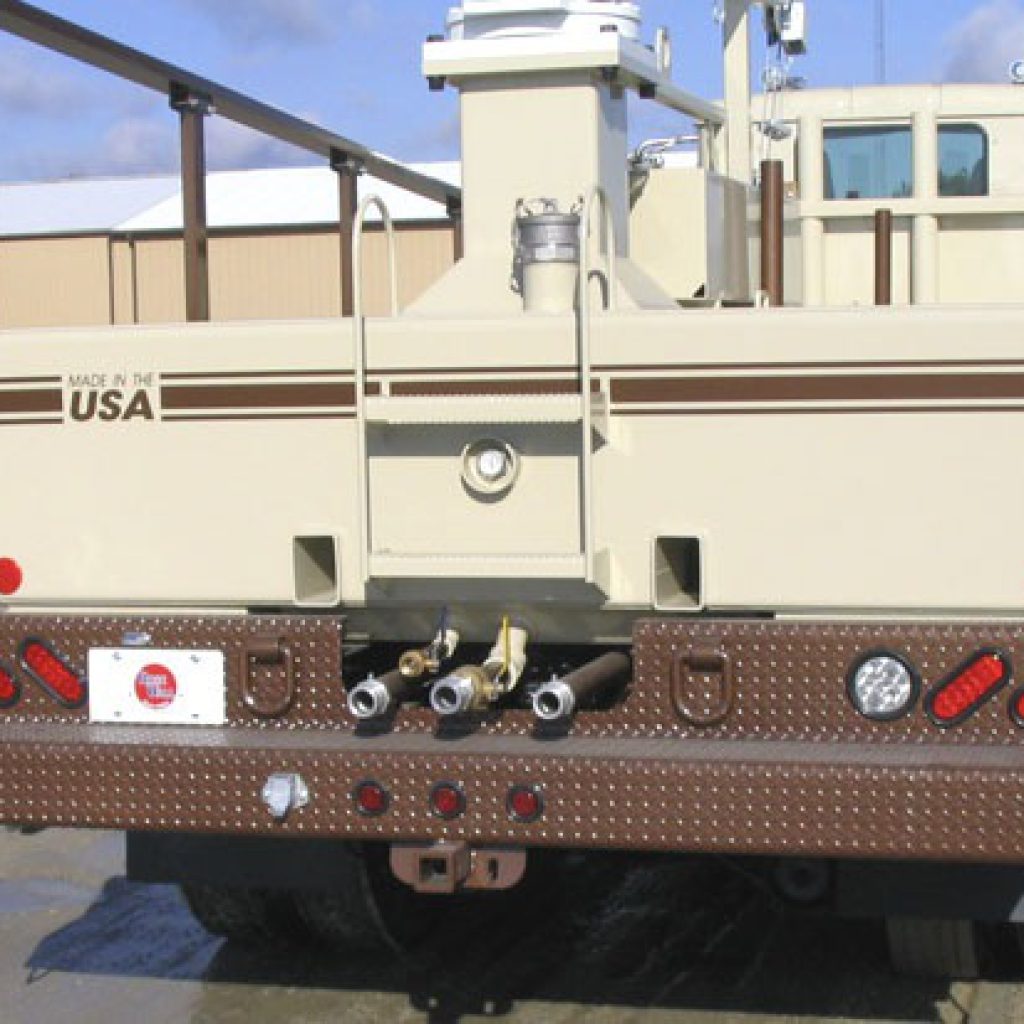

REAR BUMPER
Rose-Wall heavy-duty rear step bumper complete with L.E.D. lights, 15 ton pintle hitch, and a 7-way RV style plug.
The bumper is directly mounted to the frame of the truck preventing any stress from towing to the water tank.
